Titanium stainless steel clad plate (Ti/SS) is a composite material made of titanium plate or titanium alloy laminated with steel plate. Its metallurgical connection usually adopts explosion composite or explosion-rolling composite process. The welding of titanium and stainless steel is an indispensable part of modern manufacturing, and its technical standards and requirements are getting higher and higher.
In industry, stainless steel and titanium welding materials are widely used. Clad plates can be used for pressure vessels, transition joints, and other equipment parts subject to pressure, high temperatures, and corrosive environments.
Base Material :
Satinless steelClad Material :
TitaniumBase Thickness :
from 8mm to 400mmClad Thickness :
from 2mm to 16mmClad Plate Total Width :
up to 4200mmClad Plate Total Length :
up to 14300mmCustom Titanium SS Composite Plate

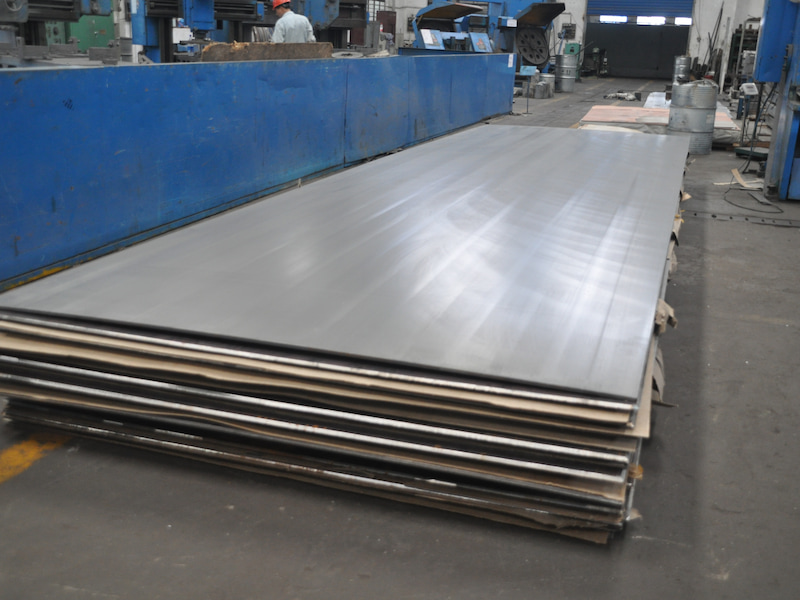

Titanium Stainless Steel Clad Plate
○Corrosion Resistance
○High Strength
○Cost-effective
○Customizable
Applicable Materials for Titanium Stainless Steel Clad Plate
Titanium Stainless Steel Clad Plates shall comply with industry standards. The composite and parent materials listed in the table can be combined as needed.
| Product Name | Titanium Stainless Steel Clad Plate |
| Standard | ASTM B898, NB/T 47002.3 |
| Cladding Technique | Explosive welding |
| Cladding Material |
Titanium (TA1, TA2, TA3, TA9, TA10 etc ) ASTM B265 Titanium (Gr1, Gr2, Gr3, Gr7, Gr12 etc ) |
|
Base Metal (various stainless steels) |
(S30400, 304) (S30403, 304L) (S31603,316L) (S31600, 316) (S30200, 302) (S31000, 310) (S31608, 316) |
| Cladding Sizes | Thickness: Around 0.3mm-60mm Width: Around 400mm-5000mm Length: Around 1000mm-16000mm (negotiation, customizable) |
| Clad Plate Total Thickness | Around 7-120mm |
| Clad Plate Total Width | Around 5000mm or Customizable |
| Clad Plate Total Length | Around 16000mm or Customizable |
| Surface Treatment | Polished, blast cleaned, pickled and passivated as per the applicable standard, or Negotiable. |
| Industrials | Oil & Gas, Petroleum refining, Chemical industry, Electric power, Military, Nuclear energy, Marine etc. |
| Application | Pressure Vessel, Reactor, Tower, Chilling unit, Pre-heater, Pump vessel, Heat-exchanger, Crystalizer Digester, Hydrocracker, Polymerizers, Shift Reactors. |
Contact our material specialists today to discuss your requirements, request a quote, or get technical specifications for your project.
